Alpine 12D2 Subwoofer Bundled with HA-A800.1 Mono 1600W Sub Box & FORDWK2X12 Q904438

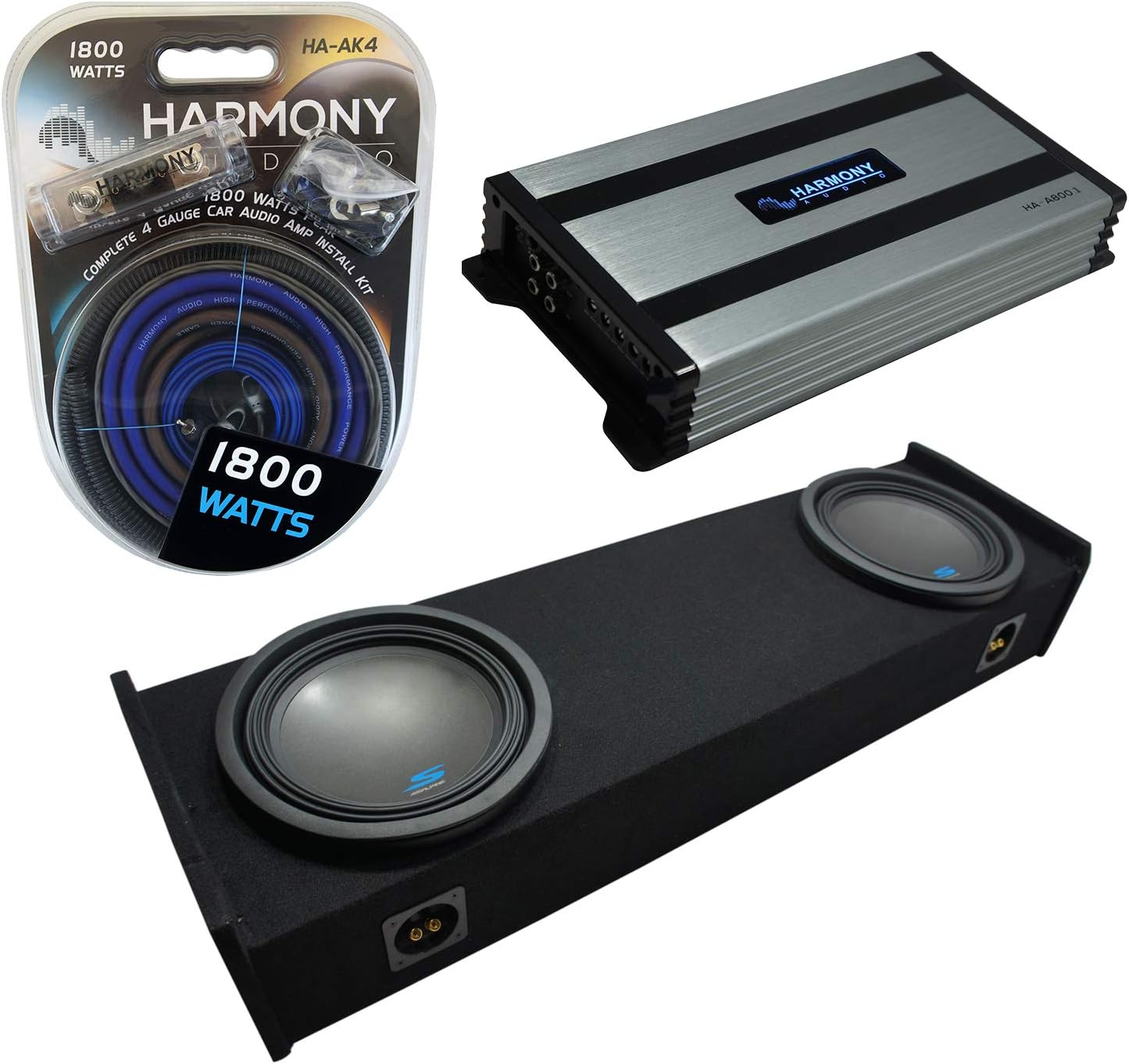

This Package Includes the Following Items:

• 1 x Harmony Audio HA-A800.1 Class D Mono 1600W Sub Amp

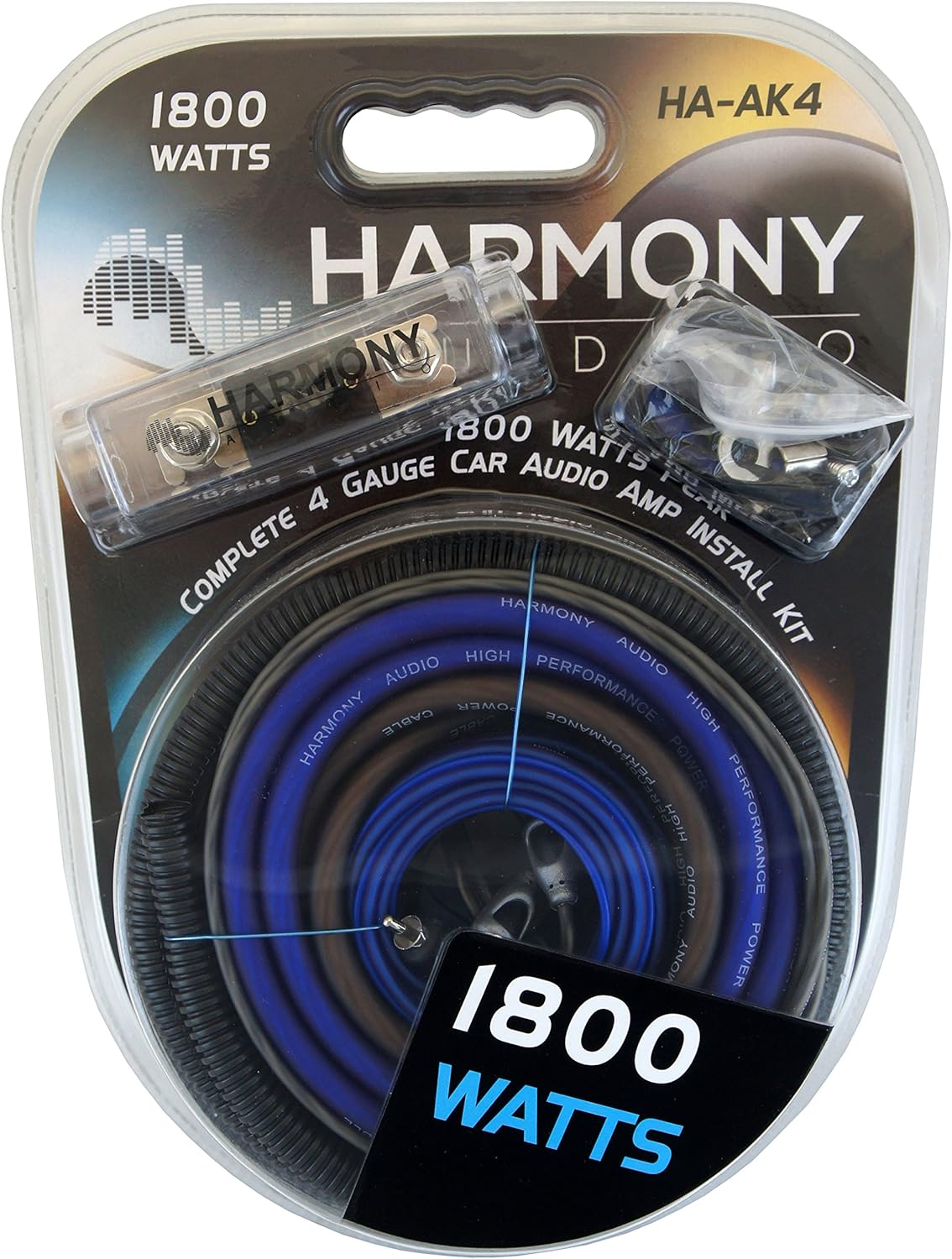

• 1 x Harmony Audio HA-AK4 Car 4 Gauge Amp - Nickel
• 2 x Alpine S-W12D2 Type S Series Sub 1200W Peak 12" Subwoofer
• 1 x Custom Dual 12" 97-99 Ford F-150 Ext Cab Enclosure

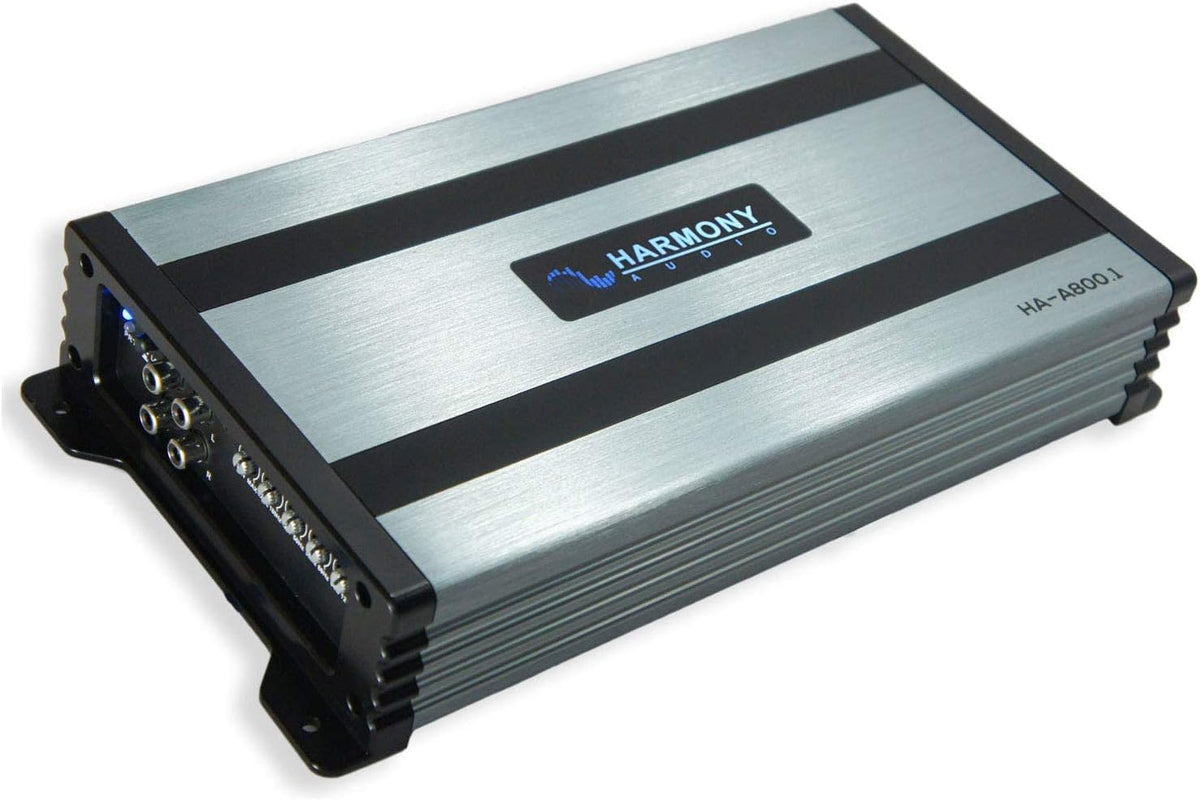

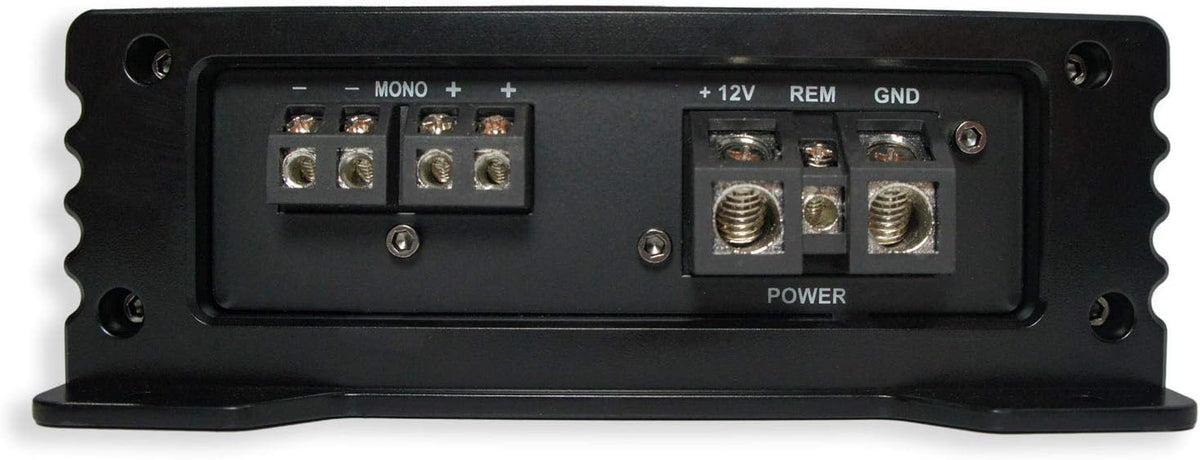

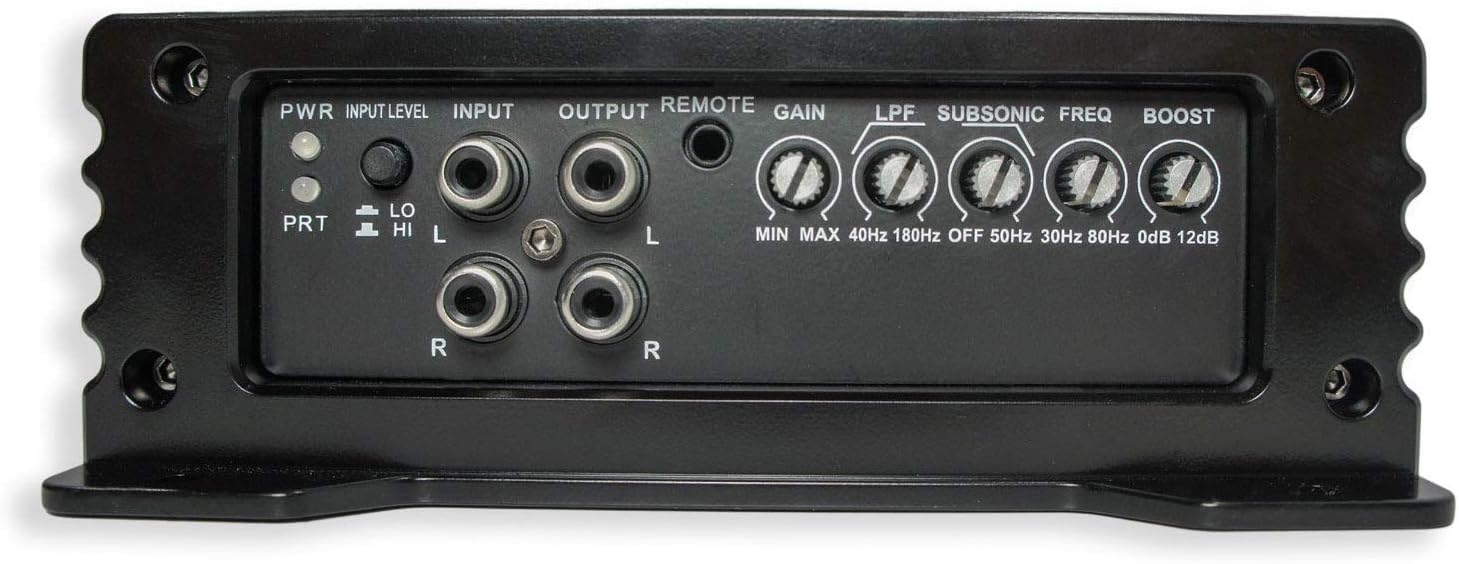

Harmony Audio HA-A800.1 Class D Mono 1600W Sub Amp:

Specifications:

• Power Handling:
• 14.4V @ 1 Ohm
• 800 Watts RMS x 1
• 1600 Watts PEAK x 1

• 14.4V @ 2 Ohm
• 600 Watts RMS x 1
• 1200 Watts PEAK x 1

• Frequency Response: 10Hz-180Hz

Features:

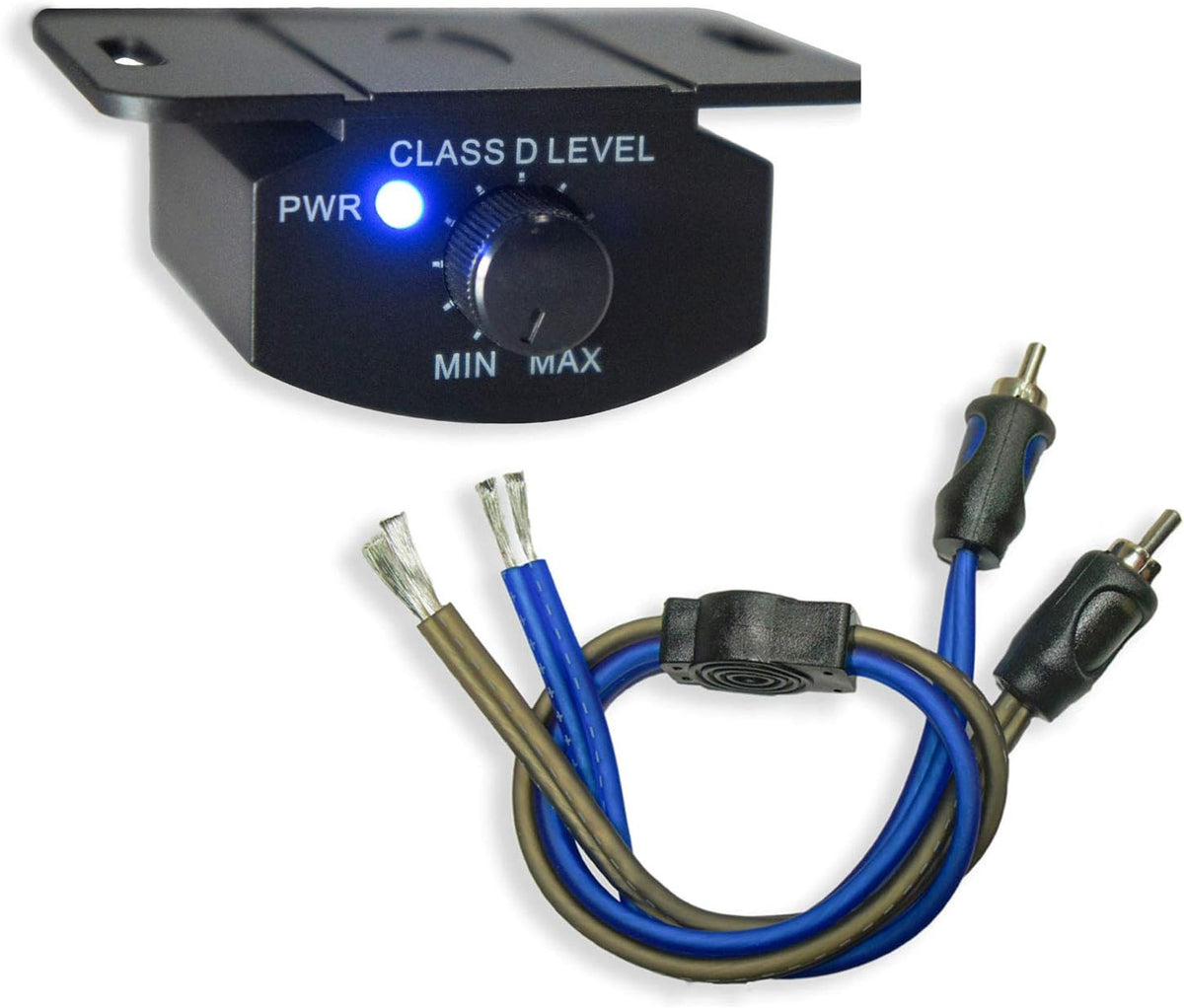

• Includes Remote Bass Control Knob with Power Indicator LED
• Includes HA-EASY Speaker Wire to RCA Adapter to Simplify Installation

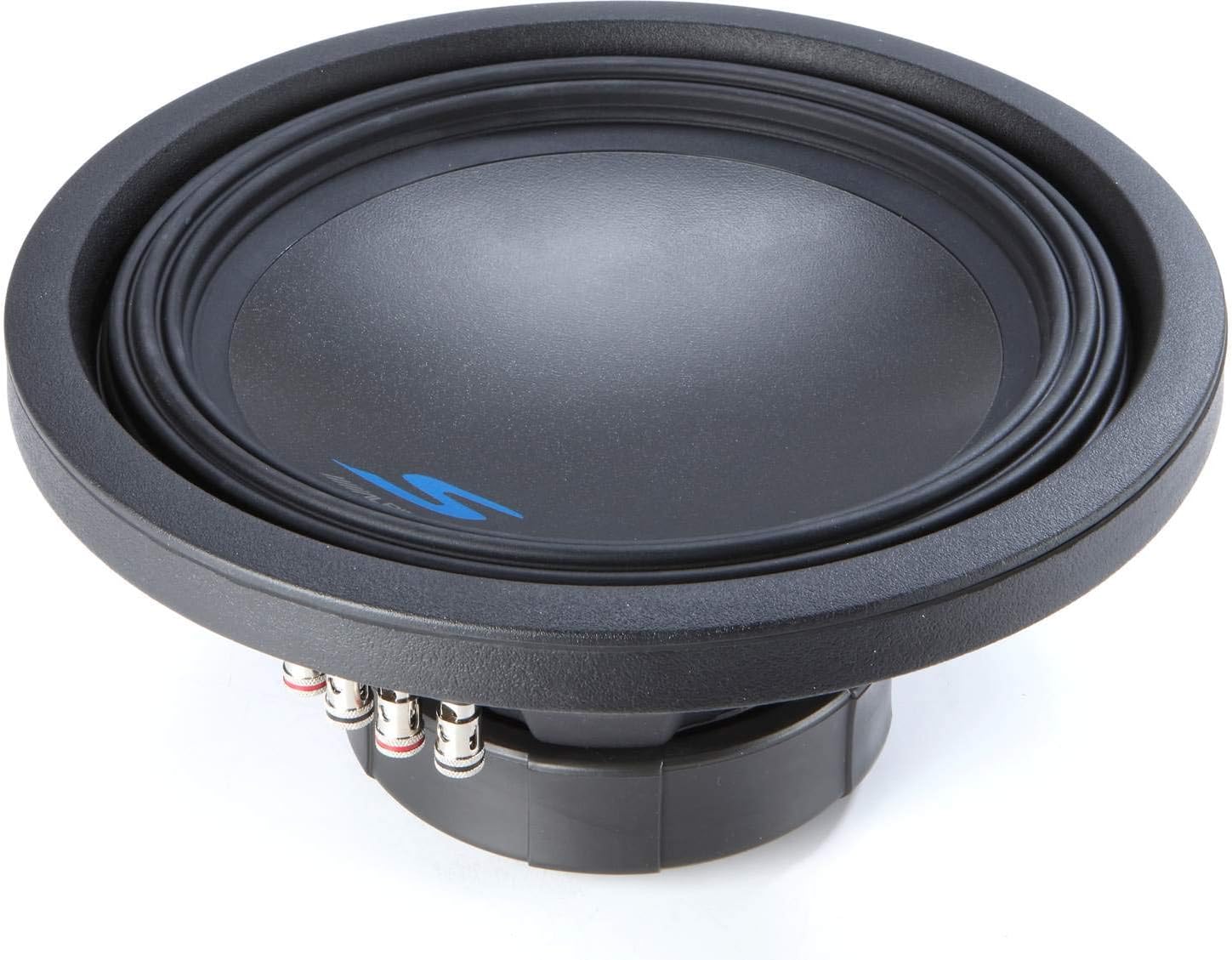

Alpine S-W12D2 Type S Series Sub 1200W Peak 12" Subwoofer:

• General Features:
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Top-mount depth: 5-1/16"
  • Cutout diameter: 10-9"
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.2dB
  • Resonance Frequency (Fs): 31 Hz

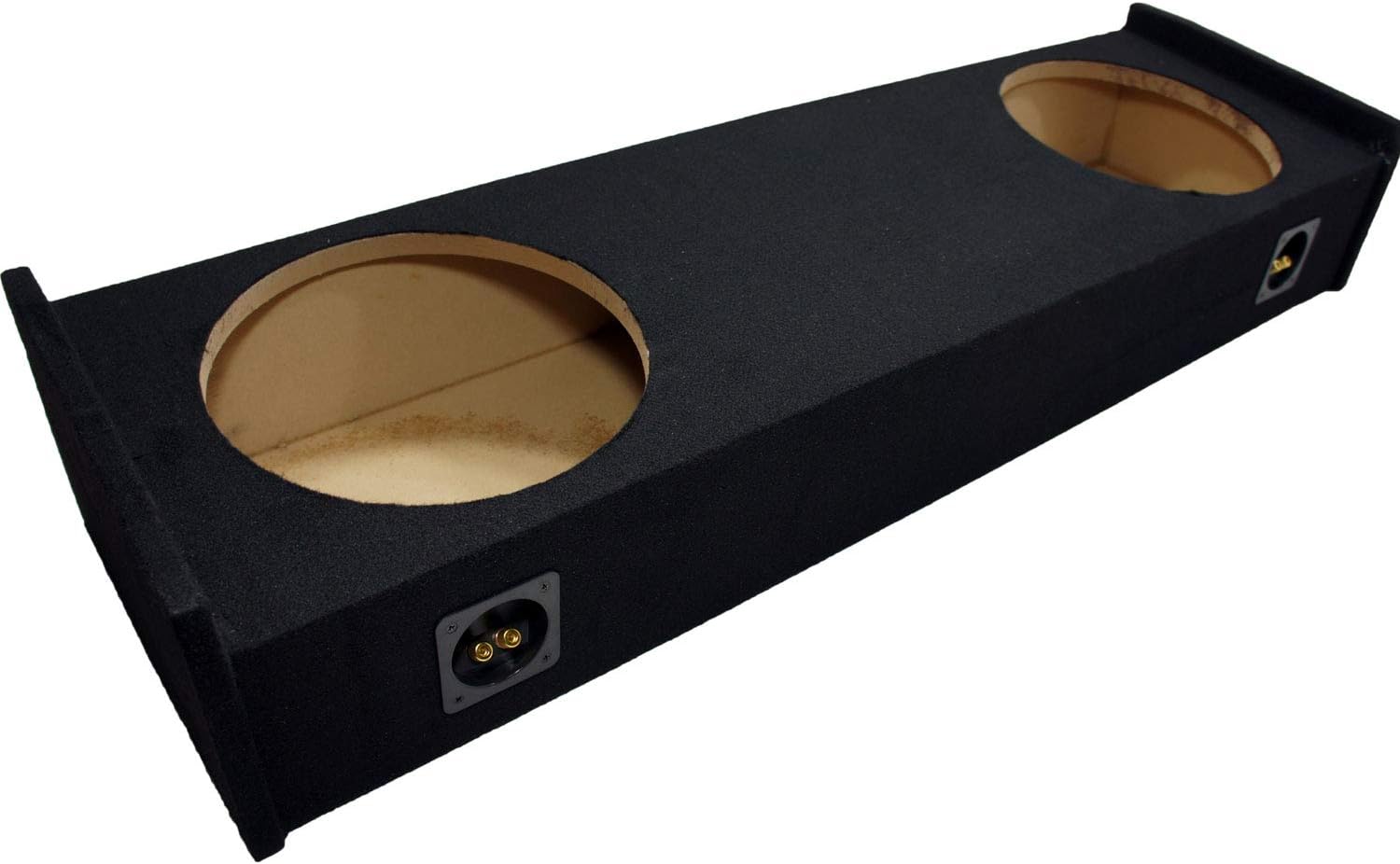

Custom Dual 12" 97-99 Ford F-150 Ext Cab Enclosure:

• Dual 12" 97-99 Ford F-150 Extended Sub Box
• • Mounting Depth: 9"
  • Air Space: 0.65 Cubic Feet Per Sub
  • Sealed Enclosure
  • Dimensions: Width 47-1/2" x Front Height 8-1/2" x Rear Height 7-1/2" x Depth 13-3/4" - Mounting Depth: 9"
• High Quality Black Carpet
• Enclosure installs under the rear seat down firing
• Rear seat assembly has to be raised in order for the box to fit a lift kit is included with the box purchase

• 1997-1999 Ford F-150 Extended Cab
